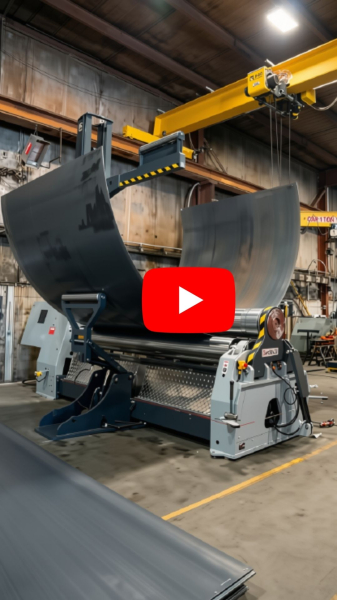

Linders Specialty Company can roll sheets and plates up to 10’ wide and 5/16” thick using our Roundo PS205 plate roller. We can also do thicker sections in narrower widths. For example, ½” plate 24” wide can be rolled down to a 32” diameter. We have extensive experience rolling cones and troughs as well. Our experienced staff is trained to handle all types of materials from steel to stainless steel, Inconel, aluminum, brass and bronze. We keep the hardened rolls clean to stop contamination between jobs, not always an easy task. Our CAD staff is well-educated in the special requirements for cone layout and trimming to provide the most accurate and smoothly rolled cones possible.

Our Acrotech urethane production roll has capabilities like no other. It is the largest and widest machine of its type available. We ordered it equipped with additional smaller top rolls for rings down to 2 ½” inches in diameter. It can roll parts with no flats in up to 3/16” thick mild steel or ¼” thick aluminum up to 30” wide. If you’ve got a perforated part that needs to be rolled then this is the machine to use and we are your vendor. Typical three point rolling machines will leave kinks or require secondary operations to remove fillers to get a smoothly rolled part. This machine does it in one quick operation.

By making a low cost mandrel for each part, repeatability and low cost is achieved through high-speed production. Prototypes can often be made using existing tooling that is sufficiently similar.

Get a Quote Today
Fabricated Steel 14" Stomper Shoe Rolled Plate
Roll and Trim .125 Aluminum Sheet
Roll and Trim .250 Aluminum Plate
General Capabilities
Brake Forming
Plasma and Oxy-Fuel Burning
Roll Bending
Shearing
Intended Cutting Material
Aluminum
Brass
Bronze
Carbon Steel
Cast Iron
Galvanized Steel
Heavy Plate
Mild Steel
Steel
Non Ferrous Metals
Stainless Steel
Perforated Materials
Brake Forming Method CNC
Brake Forming Size Capabilities
Length:
Max – 10.2 ft
Width:
Max -12 ft
Throat Depth:
7 in
Tonnage:
Max – 230 Ton
Brake Formed Shapes Produced
90° Rib
90° Bottom V
Over 90° Bends
Channel
Closing
Cone Forming
Double Form
Hat Channel
M.T. Offset
Offset
Open Hat Channel
Radius
Single Form
Tube Crimping
Wipe Die
Plasma & Oxy Fuel Cutting Method
CNC Free Hand
Plasma & Oxy Fuel Cutting Axis 2-Axis
Plasma & Oxy Fuel Cutting Size Capabilities
Material Thickness:

Min (Mild Steel) – 18 Gage
Max(Mild Steel) – 6 in
Length:

Max – 12 ft
Width:

Max – 14 ft

Diameter:

Max – 12 ft
Weight:

Max – 20,000 lbs

Plasma & Oxy Fuel Cutting Capabilities
Curved Slots
Notching
Round Holes
Square Holes
Straight Slots
Trimming
Roll Bending Method
CNC Manual Roll Bending
Roll Bending Size Capabilities
Material Thickness:

Max – .1875 in (Mild Steel)
Max – .250 in (Aluminum)
Width:

Max – 10 ft

Diameter:

Max (Sch. 40 Pipe) – 8 in
Max (Round Bar) – 6in
Weight Capacity:

30,000 lb

Shearing Method CNC
Shearing Size Capabilities
Thickness:

Max – .375 in (Stainless Steel Plate)
Max -.500 in (Plate Steel)

Max -.750 in (Aluminum Plate)
Length:
Max – 60 in
Production Volume
Prototype to Mid Volume
Min – 1 units per month
Max – 100 units per month
Lead Times Available
Quoted on job by job basis
Min – 1 Week
Max – 2 Weeks
Finish
Anodized
Chrome Plated
Paint
Passivating
Polished
Powder Coated
Zinc Plated
Secondary Operations
Welding
Drilling
Inspection
Manufacturability Consulting
Tapping
File Formats
BMP
DXF
GIF
JPG or JPEG
PDF
TIFF
No Pro-E or Pro/Engineer (DRW,PRT,XPR) SolidWorks
AutoCAD
Industry Focus
Aerospace
Automotive/Transportation
Marine
Medical
Oil
Playground
Packaging
Pharmaceutical
Heavy Equipment
Construction
Food Processing
Architectural Metal Fabricating
Road Equipment Manufacturing
Lifting Equipment Manufacturing
Dairy Equipment Manufacturing
Mechanical Conveying Equipment Manufacturing
Pneumatic Conveying Equipment Manufacturing
Tank and Pressure Vessel Manufacturing
Plant Maintenance Departments
Municipal Equipment Maintenance
Metal Artists and Sculptors
Aviation
Structural Metal Fab
Government, DOT, etc.
Railroad Equipment Fab and Maintenance, etc.
Intended Application
Architectural Ornaments
HVAC
Metal Art
Pressure Vessels
Signs
Tanks
Maintenance Equipment
Road Equipment
Cement Mixers
Garbage Trucks
Pneumatics
Sculptures
Heavy Duty Vehicle
Prototyping
Short and Medium run production
Industry Standards
ANSI
AS
ASME
ASTM
DOT
FAA
FDA
ISO
Mil-Spec
NADCAP
RoHS
SAE
